Vertical
ALADINO

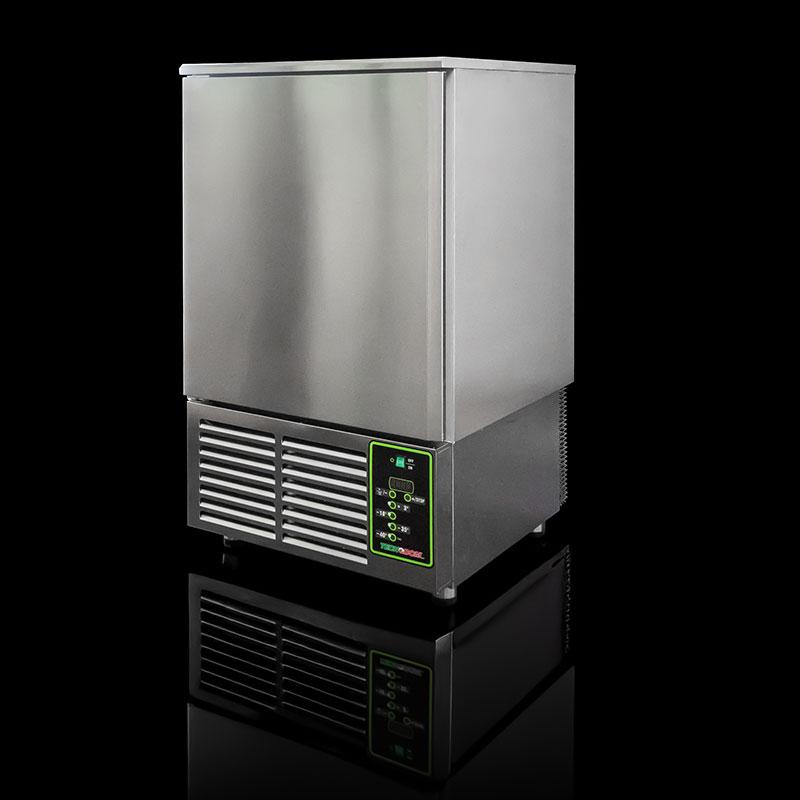

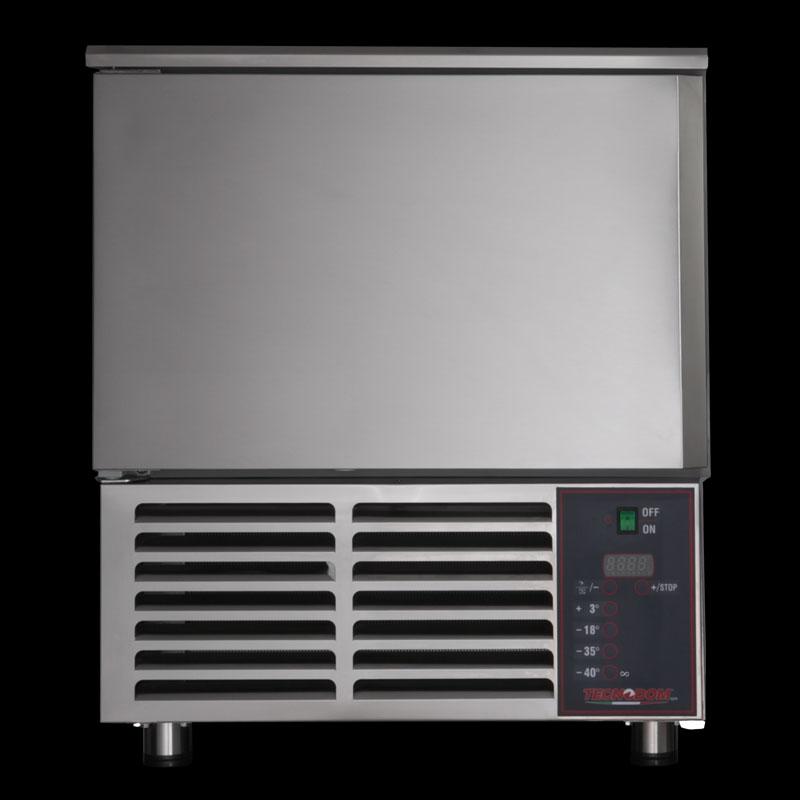

Digital blast chiller, 3 to 20 trays.
Blast chiller in stainless steel 18/10 for 3 / 5 / 10 / 15 / 20 GN 1/1 or 600 x 400 mm trays. Simple, intuitive, instant.
Ideal for
GastronomyIce creamBakeryFish
Specifications

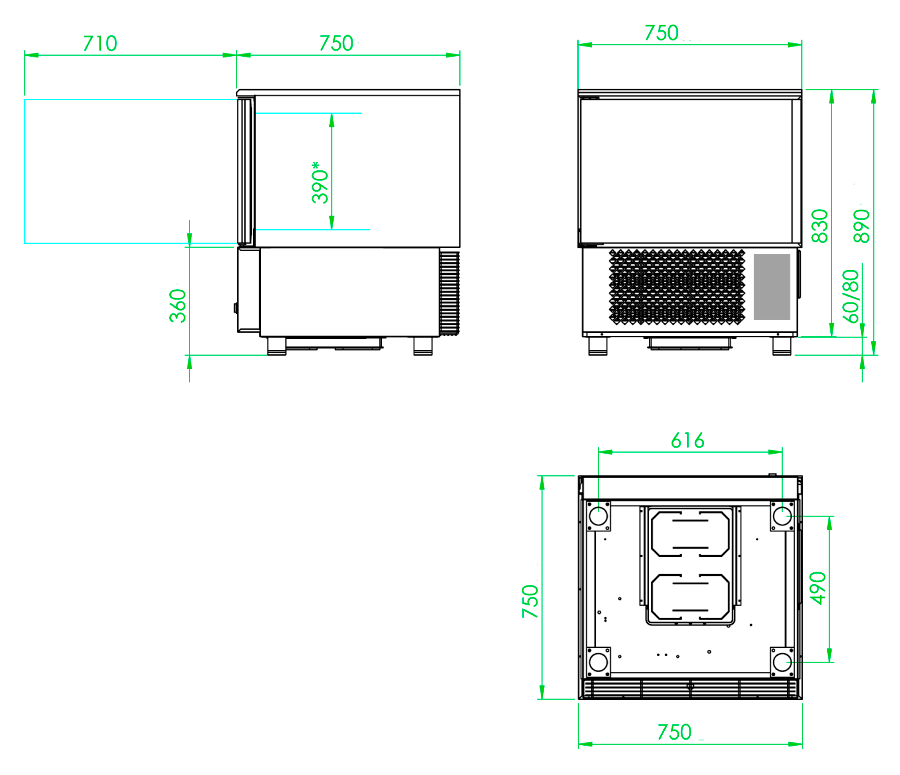

- Depth
- 750 mm
- Length
- 750 mm
- Capacity
- 3 / 5 / 10 / 15 / 20 GN 1/1 or 600 x 400 mm trays
- Versions
- Digital · Stainless steel · Built-in unit (CG)
- Test Data
- Temperature +30°C / relative humidity 60%
- Refrigerant
- R290 or R455A
- Refrigeration
- Ventilated (V)
- Heights (R290)
- P-ATT03EA 770 · P-ATT05EA 890 · P-ATT010EA 1260 mm
- Heights (R455A)
- ATT03EA 770 · ATT05EA 890 · ATT10EA 1260 · ATT15EA 1850 · ATT20EA 2080 mm
- Standard Set-Up
- Chamber probe · core probe · universal stainless steel GN 1/1 – 600x400 mm guides
- Insulation Thickness
- 60 mm
- Operating Temperature
- +3°C · -18°C · -40°C
Features
- Stainless steel 18/10 interior and exterior, galvanised steel external base
- Rounded internal corners
- CFC-free high-pressure injected polyurethane insulation, 60 mm thick
- Self-closing door with left hinges and magnetic gasket

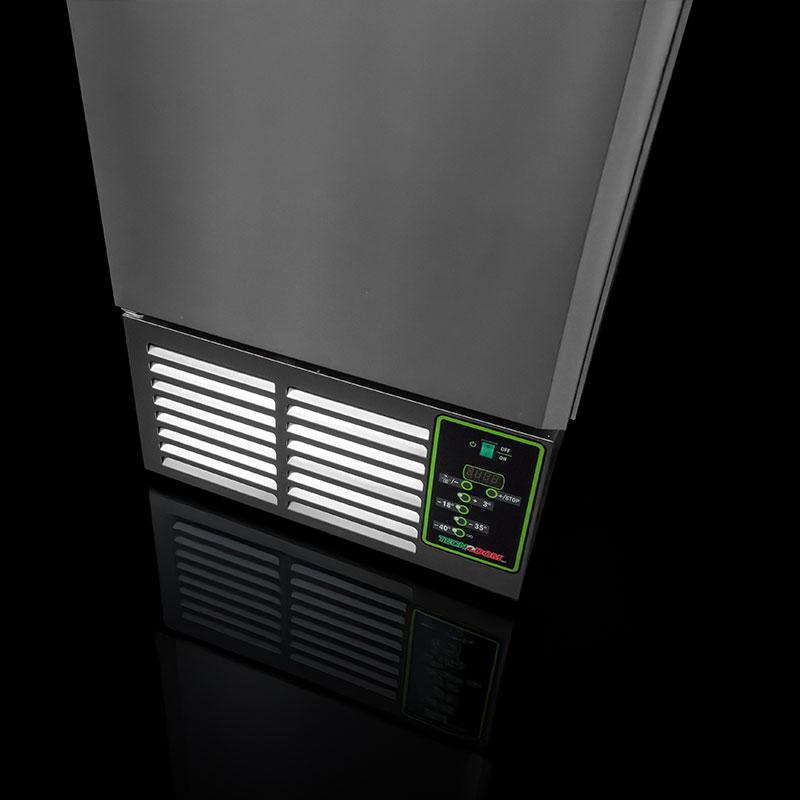

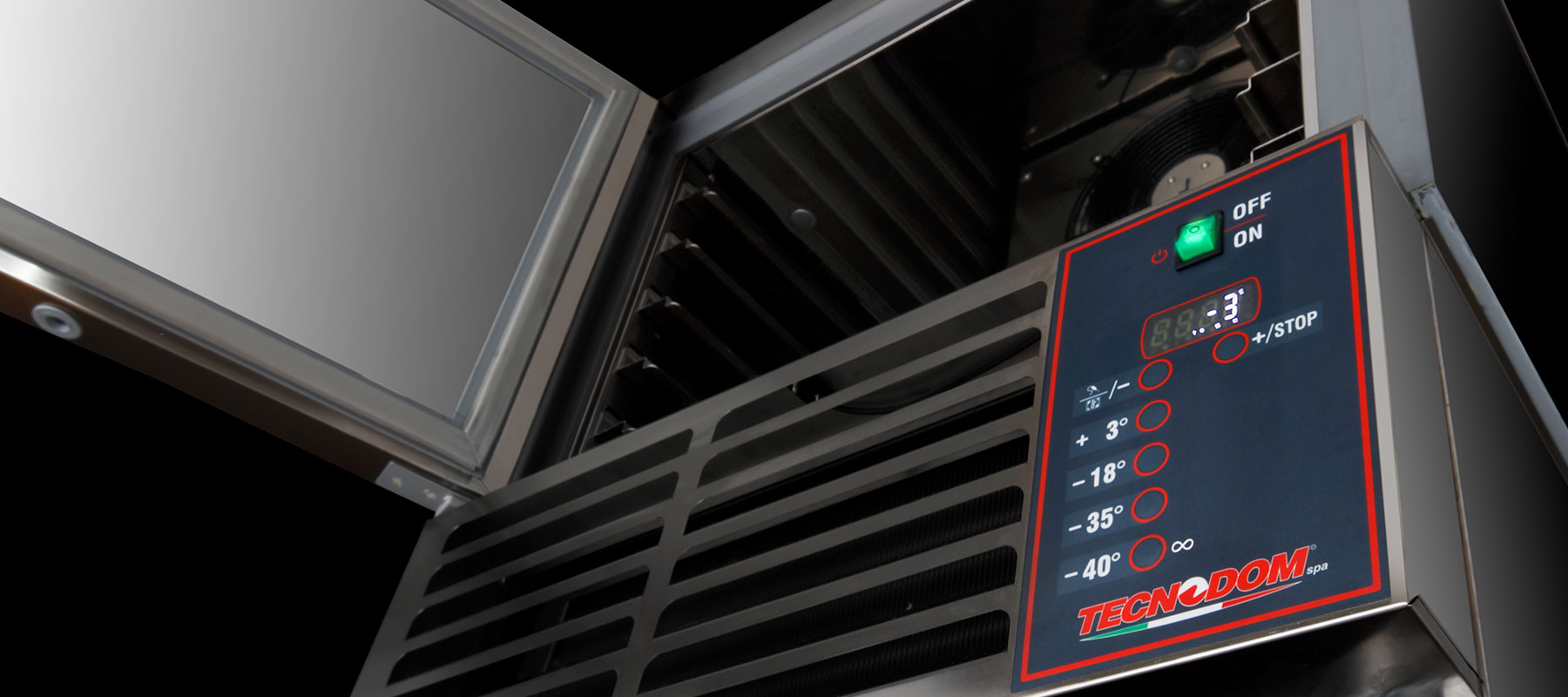

- Front panel with electronic control board

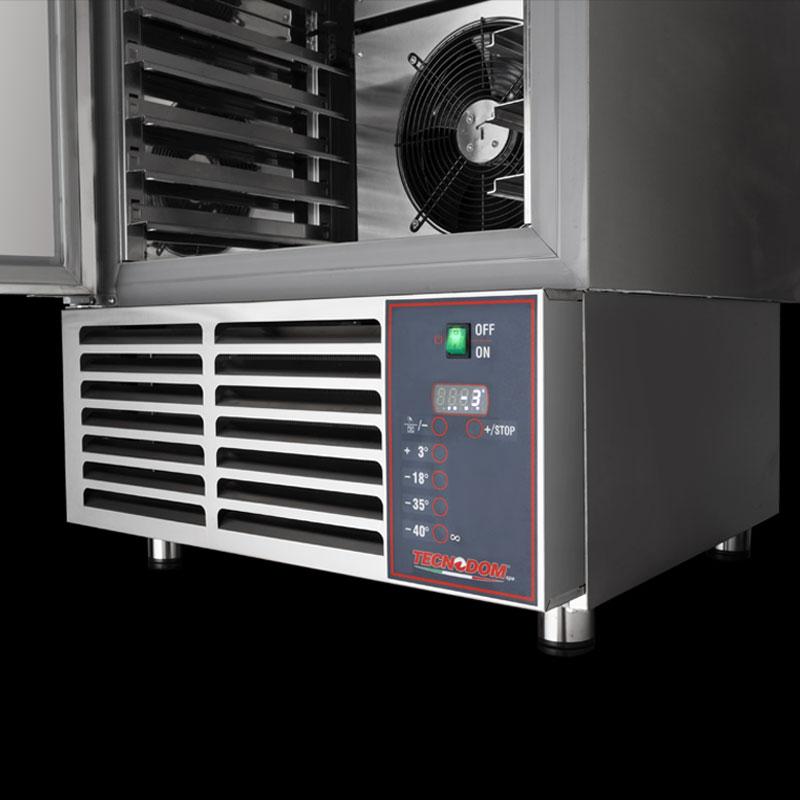

- Condensing unit with openable front grid for easy maintenance
- Evaporator with anti-corrosion cataphoresis treatment
- Defrosting with open door, without resistors or hot gas
- Removable bottom tray for condensate water collection
- Cycles can be set with a core probe: +3°C / -18°C / -35°C / -40°C
- Kit of 4 adjustable stainless steel feet (60/80 mm)
- Suitable for both GN 1/1 grids and 600 x 400 mm trays
