Vertical
EVO

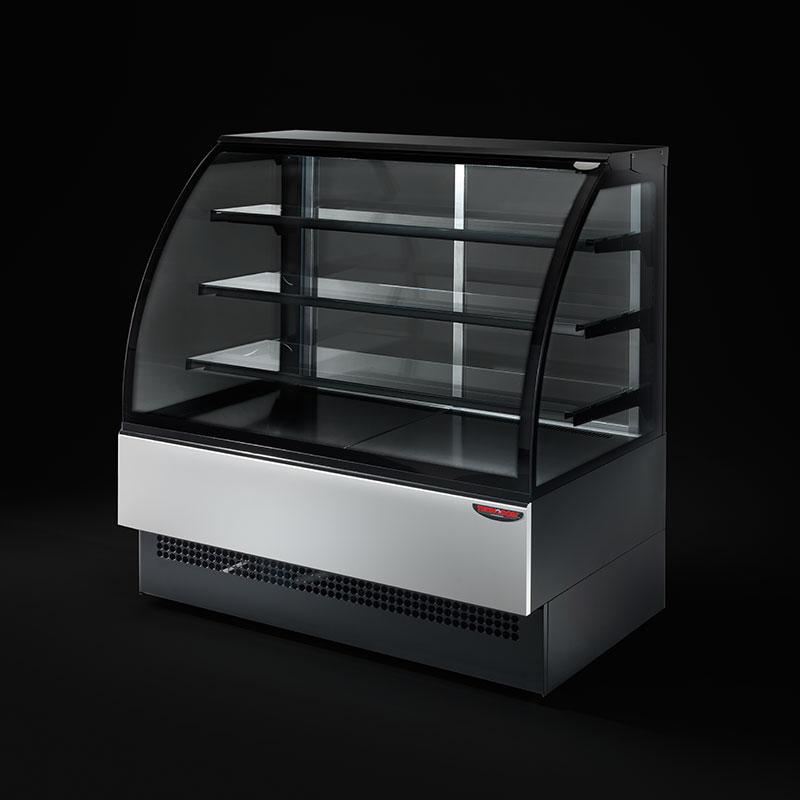

Curved glass refrigerated display, 770 mm depth.
Refrigerated display with curved tempered glass. Suitable for displaying gastronomy, pastries, cold meats, dairy products, snacks and drinks.
Ideal for
BeverageFruit & vegetablesGastronomyDairy productsBakeryCured meatsSnack
Specifications
- Depth
- 770 mm
- Height
- 1395 mm
- Colours
- Standard RAL colours for front panel; top, frame, base and glass border RAL 9005
- Lengths
- 604 · 904 · 1204 · 1504 · 1804 · 2404 mm
- Versions
- Built-in unit (CG) · Without condensing unit (SG) · Neutral (N) · Stainless steel
- Test Data
- Temperature +25°C / relative humidity 60%
- Refrigerant
- R290 (on request)
- Refrigeration
- Ventilated (V)
- Standard Set-Up
- 3 height-adjustable glass shelves with LED lights · tempered double glazing on all sides · upper LED light · double-glazed sliding doors · front glass opening with safety system · electronic control panel
- Operating Temperature
- +2°C / +4°C
Features
- Technology, design and production “Made in Italy”
- Wide display area with refrigerated and lighted shelves
- Ideal for placement in any location
- Low energy consumption and low environmental impact
- Ventilated refrigeration with constant and optimized air distribution
- Removable lower shelves
- Automatic condensed water evaporation
- Not multiplexable
- Easy installation, ready to use
