Horizontal
TAVOLO MID GASTRONOMIA TN/BT

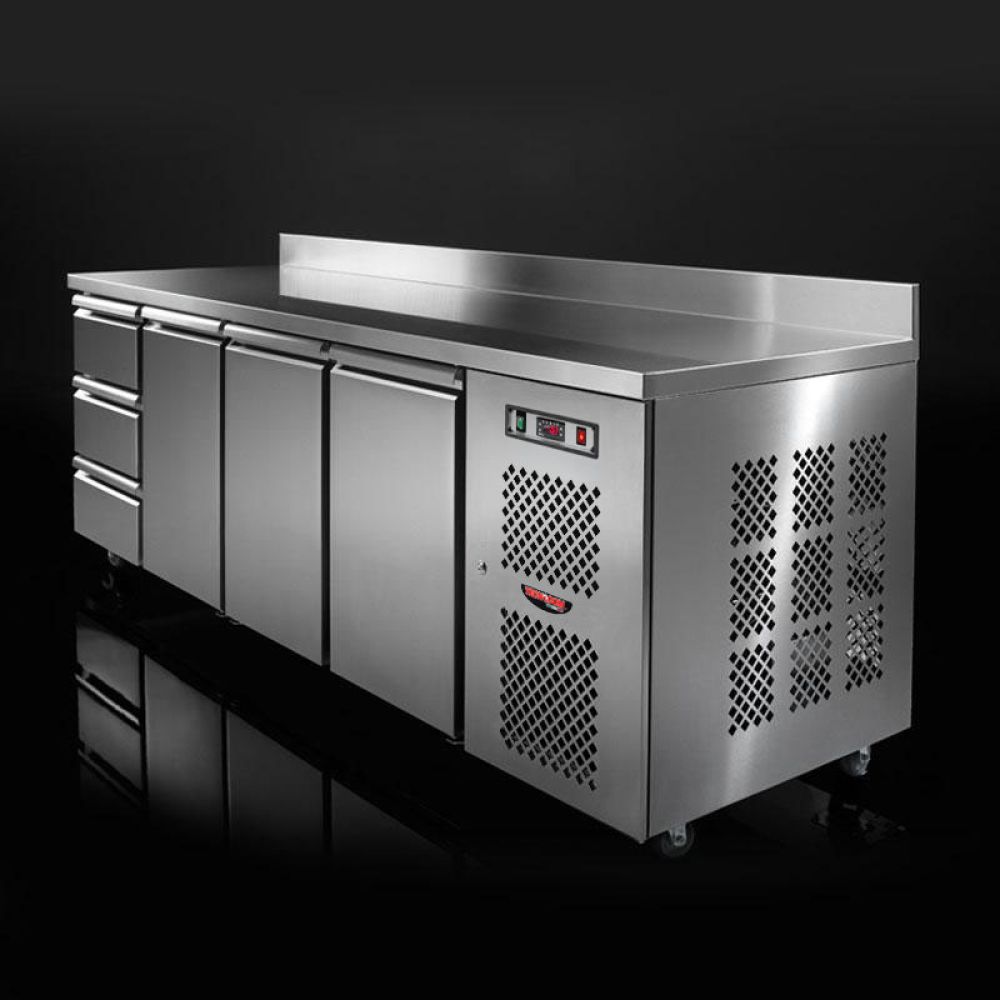

GN refrigerated counter, TN and BT versions.
Refrigerated counter for food preparation. Endless solutions to meet any use requirements.
Ideal for
GastronomyDairy productsCured meats
Specifications
- Depth
- 700 mm
- Heights
- M SP 800/870 · GN 840/910 · GNAL 940/1010 · GNGRA 830/900 · GNL 1150/1200 · GNSK 1050/1120 mm
- Lengths
- TF02 1420 (CG) / 1200 (SG) mm · TF03 1870 (CG) / 1650 (SG) mm · TF04 2320 (CG) / 2100 (SG) mm
- Versions
- Glass doors (PV, not for BT) · Built-in unit (CG) · Remote unit (SG) · Unit on the right or left
- Test Data
- Temperature +30°C / relative humidity 60%
- Refrigerant
- R290 (on request)
- Refrigeration
- Ventilated (V)
- Insulation Thickness
- 50 mm
- Operating Temperature
- +2°C / +8°C (TN) · -18°C / -22°C (BT)
Features
- Interior and exterior in stainless steel, external base in galvanised steel
- Rounded internal corners
- High-pressure injected CFC-free polyurethane insulation (density 40 kg/m³)
- Electronic front control panel — 1 NTC probe for TN, 2 NTC probes for BT
- BT counters with evaporator heater, drain heater, door edge heater and thermostatic valve
- Lockable opening motor compartment for easy condenser inspection and cleaning
- Extractable monobloc refrigeration unit, also available with remote condensing unit
- Evaporator with anti-corrosion cataphoresis treatment
- Fully automatic defrosting and condensate water evaporation
- 1 plastic-coated GN 1/1 grid and 1 pair of L-shaped stainless runners per door
- Available with top (SP) or granite worktop (GRA)
