AISS

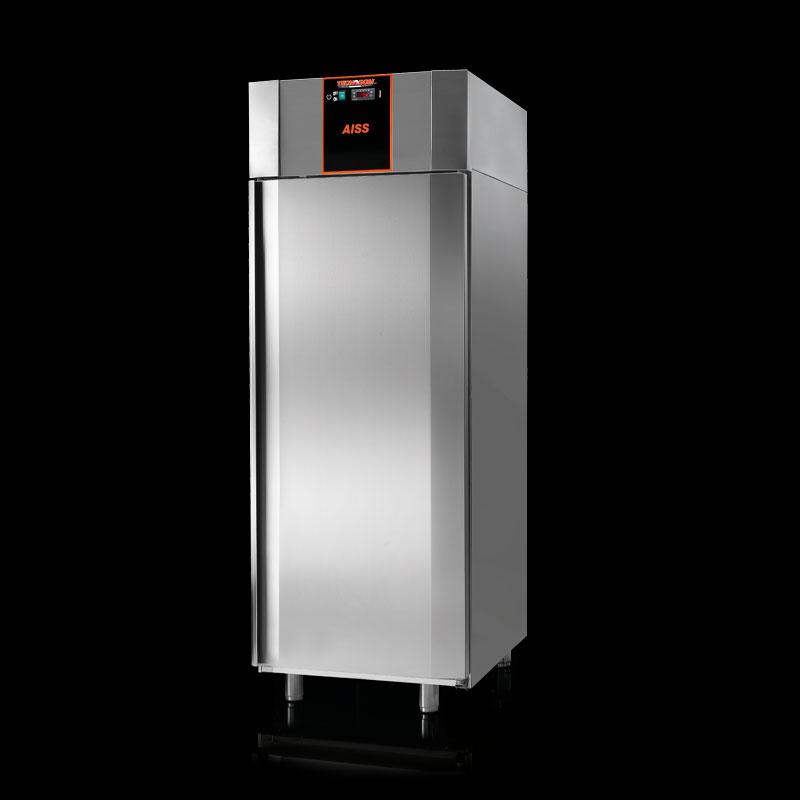

Name: AISS — TECNODOM
Brand: TECNODOM
SKU: AISS

TN/BT cabinet with ice-cream set-up.

TN (normal temperature) and BT (low temperature) refrigerated cabinet with STANDARD and ICE CREAM set-ups, developed together with ice cream experts.

Ideal for

GastronomyIce cream

Depth: 895 mm
Height: 2035 / 2100 mm
Length: 730 mm
Versions: Stainless steel · Built-in unit (CG)
Test Data: Temperature +30°C / relative humidity 60%
Refrigerant: R290 (on request)
Refrigeration: Ventilated (V)
Door Thickness: 70 mm
Standard Set-Up: 3 pairs of C-shaped stainless steel runners L 750 mm · 3 GN 2/1 plasticized grids
Ice Cream Set-Up: 54 bowls 165 x 330 x H 120 mm (5 L) · 36 bowls H 150 mm (7 L) · 30 bowls H 180 mm (9 L)
Insulation Thickness: 70 mm
Operating Temperature: -2°C / +8°C (TN) · -18°C / -22°C (BT) · -18°C / -25°C (BT ice cream)

Stainless-steel interior and exterior, galvanised steel external base, top and back
Rounded internal angles
CFC-free high-pressure injected polyurethane insulation, 70 mm thick
Self-closing doors with magnetic gasket
Front electronic control panel with 2 NTC thermistors
Removable monobloc tropicalised refrigeration unit
Standard fan stop, automatic defrosting and condensate evaporation
Shelf height adjustable on 20-hole slots (65 mm pitch)
Height-adjustable stainless steel feet (110/190 mm)
