Vertical
COMBINED CABINET
Combined fridge-freezer cabinet, 700 / 1200 / 1400 L.

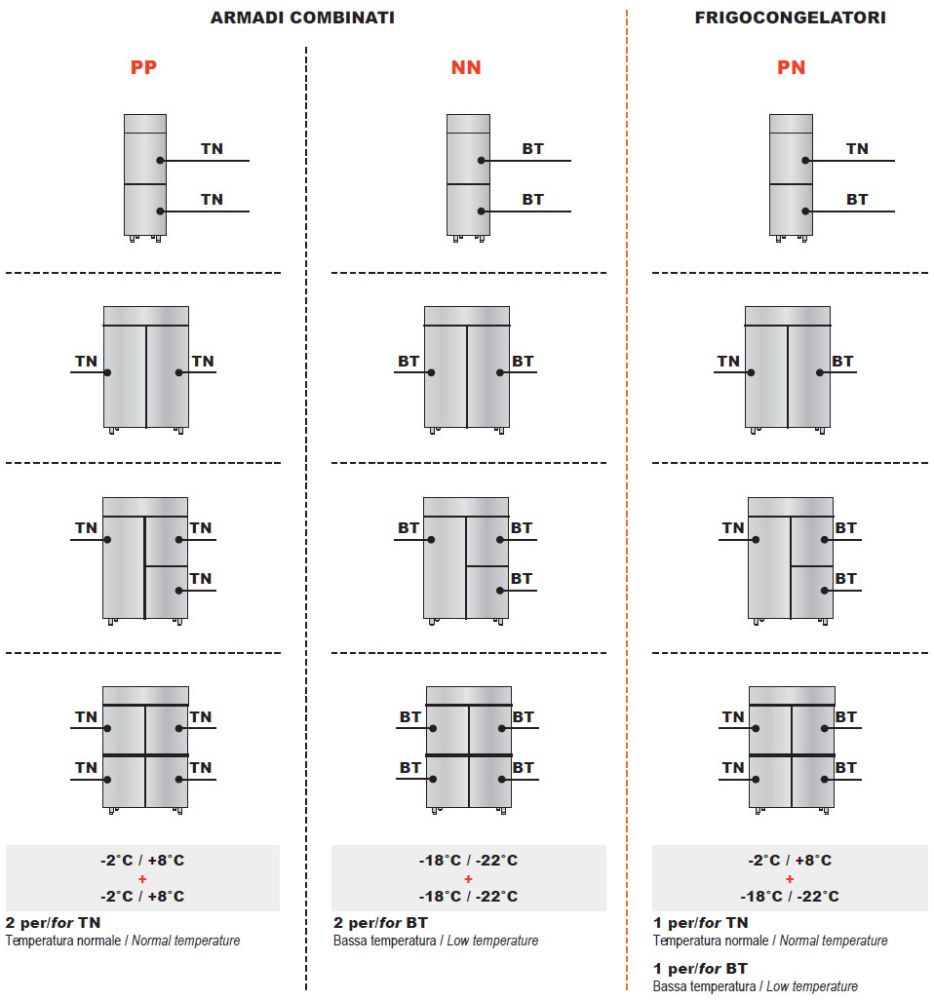

Perfekt combined refrigerated cabinets and fridge-freezers with capacities of 700 / 1200 / 1400 litres. Two separate motor units allow compartments at different temperatures: PP (positive + positive), NN (negative + negative) or PN (fridge-freezer).
Ideal for
MeatFruit & vegetablesGastronomyDairy productsBakeryFishCured meats
Specifications
- Depth
- 800 mm
- Height
- 2030 / 2100 mm
- Length
- 710 mm (700) · 1420 mm (1200/1400)
- Versions
- Stainless steel · Glass door (PV) · 1 door + 2 half doors · 4 half doors · Double temperature · Built-in unit (CG)
- Test Data
- Temperature +30°C / relative humidity 60%
- Capacities
- 700 · 1200 · 1400 litres
- Refrigerant
- R290 (on request, some models)
- Refrigeration
- Ventilated (V) · Static (S)
- Standard Set-Up
- Stainless steel rack, 6 to 8 GN 2/1 plasticized grids and runner pairs, LED light (PV), fan stop
- Insulation Thickness
- 60 mm
- Operating Temperature
- -2°C / +8°C (TN) · -18°C / -22°C (BT)
Features
- Two separate motor units for independent temperature compartments (PP / NN / PN)
- Stainless steel interior and exterior, galvanised external base, top and back
- Rounded internal corners
- CFC-free high-pressure injected polyurethane insulation (density 40 kg/m³)
- Self-closing doors with magnetic gasket, reversible with kit on request
- Electronic front control panel — 1 NTC probe (TN), 2 NTC probes (BT)
- Front panel prearranged for LED light and door lock
- Fully automatic condensate water evaporation, off-cycle defrosting
- BT cabinets with drain and door frame heaters and thermostatic valve
- Kit of 4 adjustable stainless steel feet (110/180 mm)
